Fuse boxes in the 2006 Ford Focus house critical fuses and relays for electrical systems. They are essential for troubleshooting issues like blown fuses.
Locating the Fuse Boxes
Your 2006 Ford Focus has two primary fuse boxes: one in the engine compartment and one in the passenger compartment. Locate them with these easy steps:

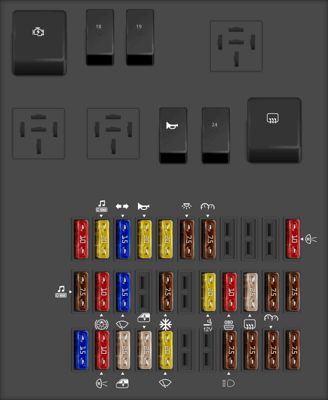

- Engine Compartment Fuse Box: Open the hood. It is positioned near the battery or along the driver's side firewall, under a black plastic cover. Simply lift the cover to access.

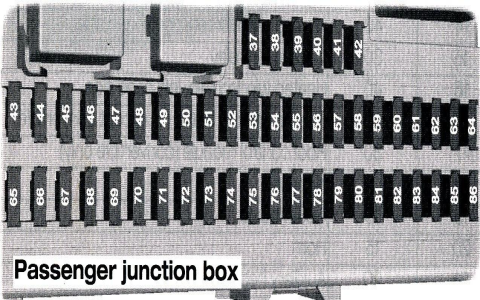

- Passenger Compartment Fuse Box: On the passenger side, look below the dashboard. Remove the glove box by pulling the stoppers inward or unscrewing fasteners; the fuse box is behind it, typically concealed by a panel. Pull the panel off to reveal.
Reading the Fuse Box Diagram
Once accessed, find the diagram printed inside the fuse box lid. It maps each fuse slot to specific circuits, such as headlights or audio system.
- To use the diagram: Identify the fuse number or name from your owner's manual. Cross-reference it with the diagram to locate and check the fuse easily.
- Important tip: Always turn off the engine and disconnect the battery before handling fuses to prevent electrical hazards.
This guide ensures quick, safe access without confusion.
