Heater Hose Routing Diagram for 1999 Suburban

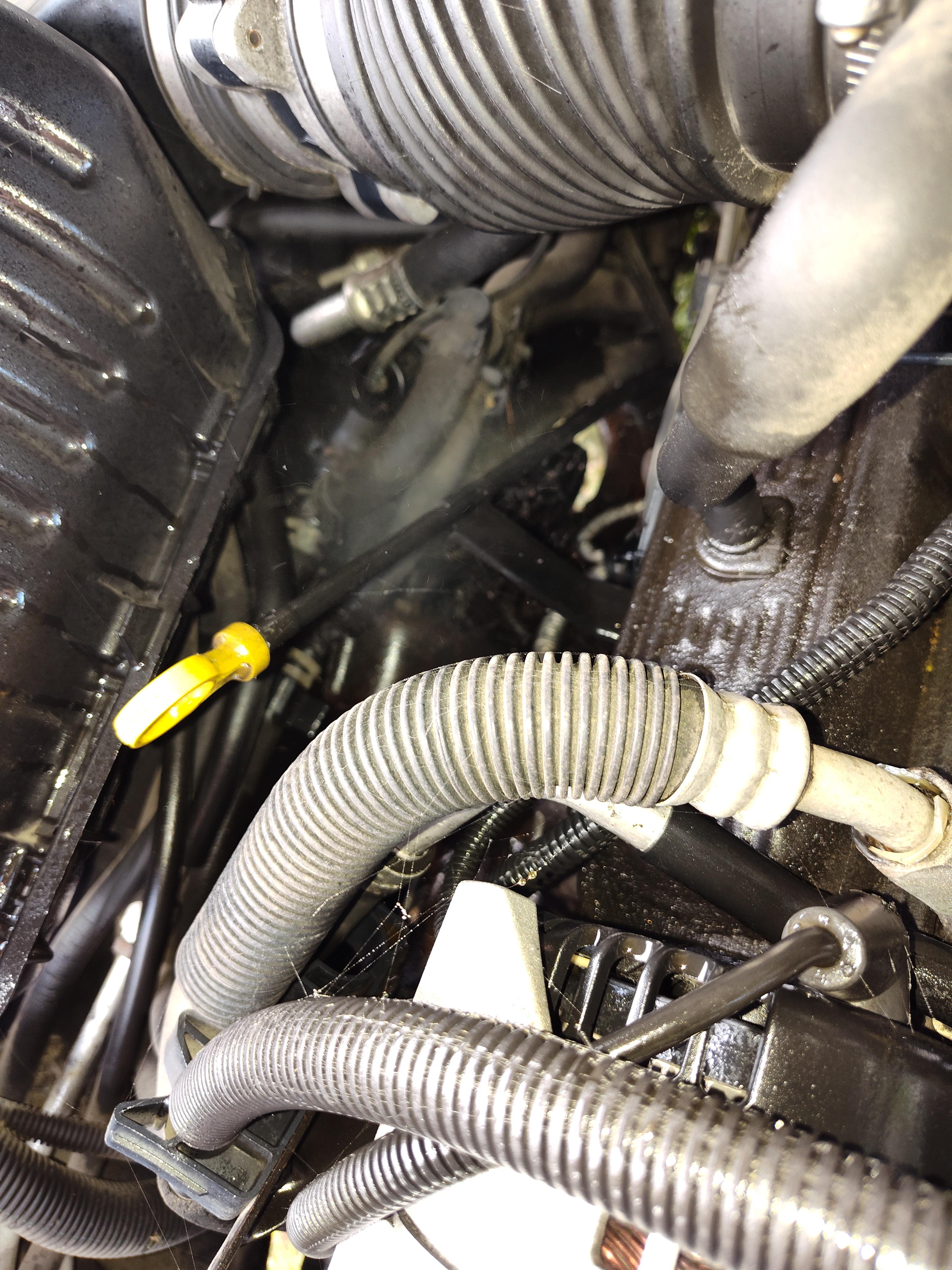

In the 1999 Chevrolet Suburban, the heater hose routing is critical for efficient cabin heating and engine cooling. This model typically features a 5.7L V8 engine with two primary heater hoses: one inlet and one outlet. The inlet hose connects from the thermostat housing to the heater core inlet, while the outlet hose runs from the heater core outlet back to the water pump or bypass valve. Always ensure hoses are free from kinks or sharp bends to maintain coolant flow.
Proper Installation to Avoid Leaks
Follow these steps to prevent common leaks. First, use OEM or high-quality heater hoses to resist cracking and degradation. Secure connections with appropriate hose clamps, such as spring clamps or constant-tension clamps. Tighten clamps evenly to avoid distortion.
- Inspect hoses regularly for signs of wear, like bulging or soft spots, and replace immediately if detected.
- Route hoses away from sharp edges or moving engine components to prevent abrasion.
- After installation, pressure-test the system to identify any leaks early.
Maintenance Best Practices
Regular maintenance extends hose lifespan. Check coolant levels monthly and flush the system every two years to prevent buildup that stresses hoses. Keep a diagram from the service manual on hand during replacements to verify routing and avoid errors. Replace all heater hoses as a set to ensure uniform performance, typically every 60,000 miles or if visible damage occurs.
