Finding the Serpentine Belt Diagram for a 2006 Ford Taurus
Locating the serpentine belt diagram ensures efficient replacement or maintenance. This guide provides step-by-step instructions tailored to your 2006 Ford Taurus with the 3.0L V6 engine.
Step-by-Step Guide to Find the Diagram
- Step 1: Open the vehicle hood securely and inspect the engine compartment.
- Step 2: Look for a sticker or label affixed to the radiator support, upper radiator shroud, or engine bay cover. This displays the belt routing diagram.
- Step 3: If the sticker is damaged or absent, consult the owner's manual. It includes detailed diagrams in the maintenance section.
- Step 4: Trace the belt route visually before removal to avoid errors during reinstallation.
- Step 5: Document the routing with notes or photos for future reference.

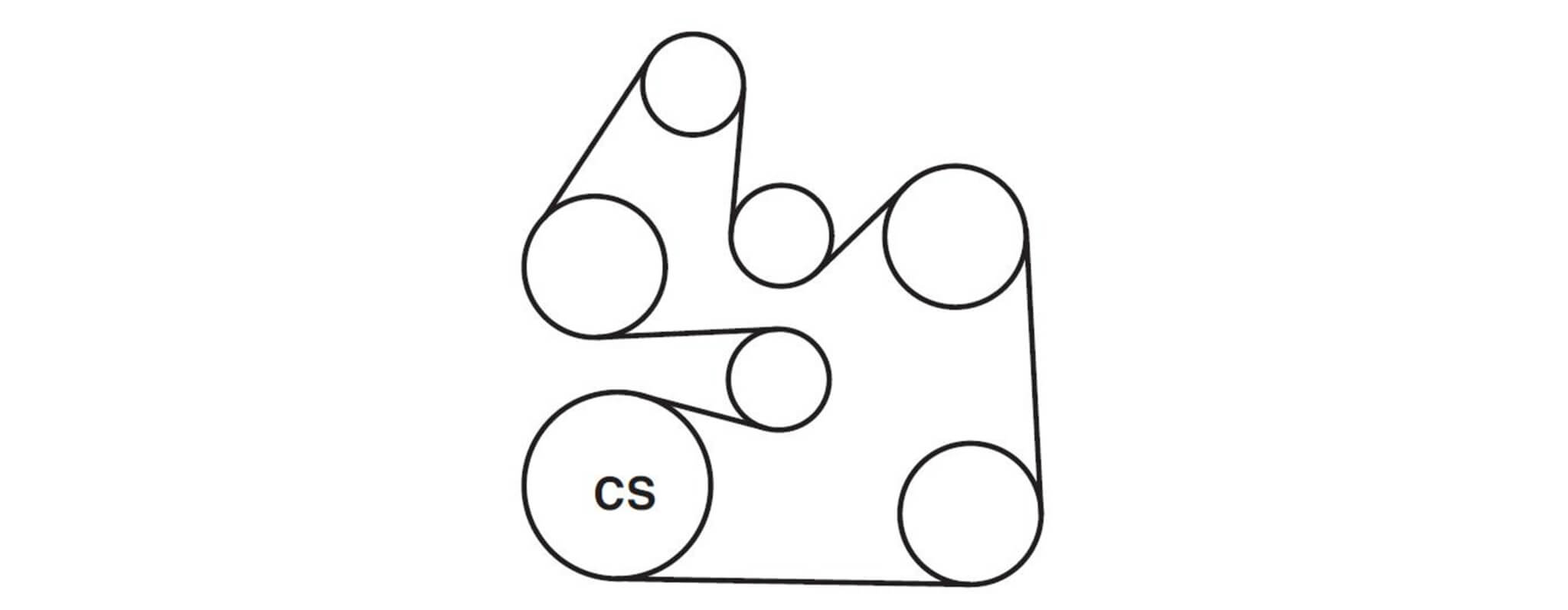

Typical Serpentine Belt Routing Overview
For the 2006 Ford Taurus, the serpentine belt path typically starts at the crankshaft pulley, proceeds over the alternator pulley, wraps under the power steering pump pulley, runs over the tensioner pulley, and ends at the A/C compressor pulley. Always verify with your specific diagram for accuracy.
Safety Precautions: Disconnect the battery negative cable before starting work to prevent electrical hazards. Ensure the engine is cool and tools are properly rated for automotive use.
