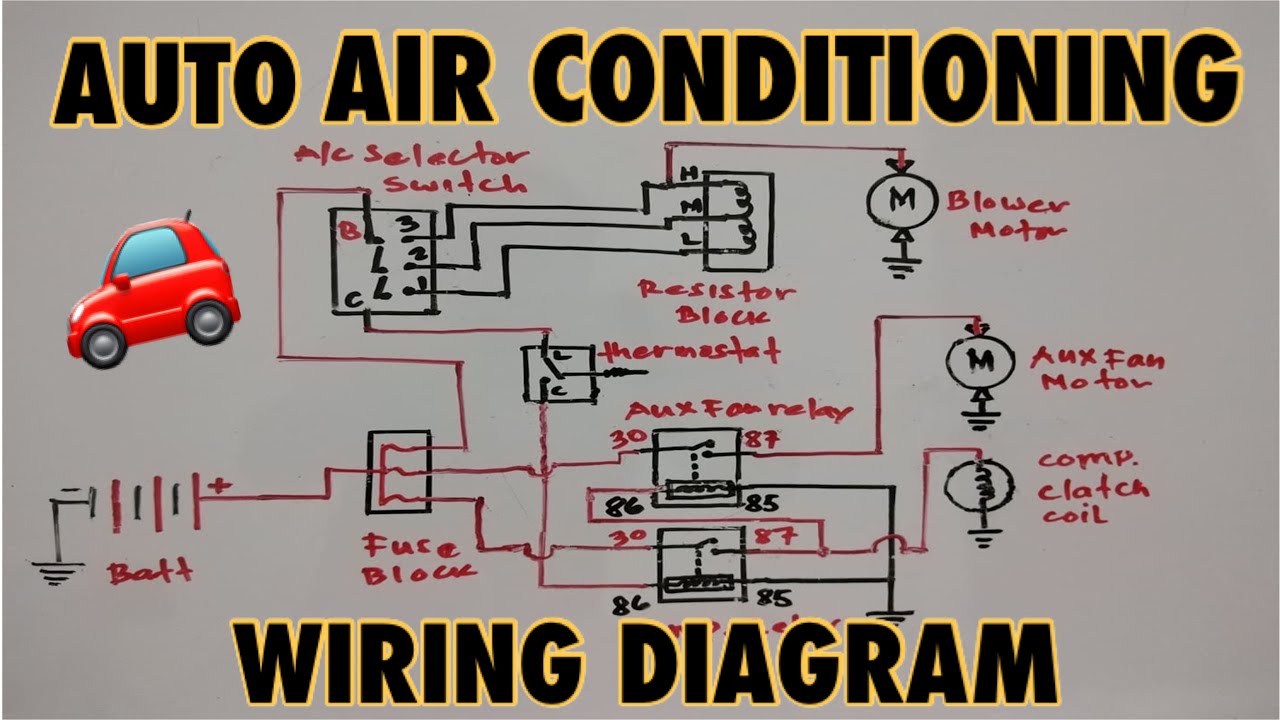

Electrical issues are a common cause of auto AC failure. Using the vehicle's wiring diagram, focus troubleshooting on these critical areas for fast diagnosis:
Verify Power Source & Grounds
Always start here: Most electrical faults stem from missing power or bad ground connections.
- Battery & Fuses: Check main battery voltage and connections. Confirm power is reaching the AC fuse panel using a multimeter. Replace blown fuses found via the diagram.
- Ignition Signal: Verify 12V is present at the AC control head or clutch relay trigger wire only when the ignition is ON (check diagram for specific terminal).
- Ground Points: Locate grounds per the diagram. Disconnect, clean corrosion, ensure tight metal-to-metal contact, and test continuity to the battery negative.
Test Key Relays & Switches
- Compressor Clutch Relay: Swap with a known good, identical relay. Listen/feel for a click when AC is turned on. Test power input, trigger signal, and output terminal voltage per diagram.
- Pressure Switches: Locate high/low pressure switches. Temporarily jump connector terminals per diagram with specific switches removed if safe (briefly!). If the clutch engages, suspect a faulty switch or incorrect refrigerant pressure.
- Blower Motor Resistor/Module: If fan speeds are inoperative, check resistor/module input/output pins for voltage changes with speed settings (refer to diagram).
Direct Component Checks
- Compressor Clutch: Apply direct 12V to the clutch coil connector (per diagram pinout). If it doesn't engage, the clutch is faulty.
- Blower Motor: Apply direct 12V and ground to the motor terminals. No operation confirms motor failure.
Inspect Wiring & Connectors
- Visual & Physical: Trace wires per diagram. Look for obvious damage, chafing, melted insulation, or corrosion. Wiggle harnesses while systems are active to spot intermittents.
- Continuity & Voltage Drop: Test suspected wire runs for continuity (ohmmeter) and excessive voltage drop (millivolts) under load along the circuit path identified in the diagram.
- Connectors: Unplug key connectors (relay sockets, pressure switches, control head). Inspect terminals for corrosion, bent pins, or looseness. Clean contact points.
Essential Tools: Factory wiring diagram specific to your vehicle, digital multimeter (DMM), test light, basic hand tools, contact cleaner.
Prioritize Safety: Wear eye protection. Never overload circuits. Avoid shorts. Disconnect battery negative before major probing if unsure.
