Locate your 2005 Chevy Trailblazer fuse boxes. The primary Interior Fuse Block is typically on the driver's side lower dash panel, accessible near the door. The Engine Compartment Fuse Center is near the battery. Always disconnect the negative battery cable before working on fuses.

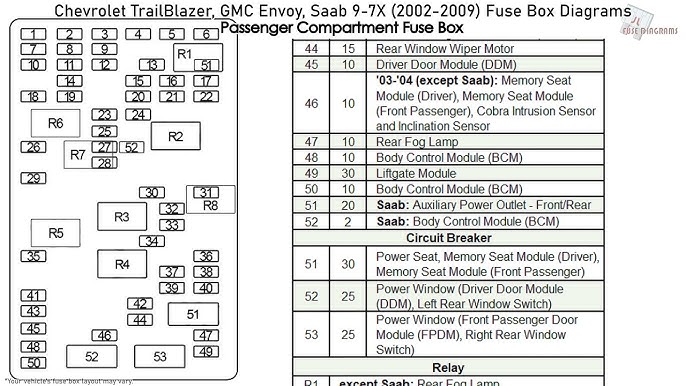

Using the Diagram for Diagnosis
Match the symptom to the fuse using the diagram labels (e.g., "CIGAR" for lighter, "PARK LP" for parking lights). Identify the corresponding fuse number and its amp rating.
- Blower Motor Failure (HVAC): Check HVAC fuse (Interior Block, typically #33 - 40A).
- Power Outlet/Cigarette Lighter Dead: Check CIGAR fuse (Interior Block, typically #13 - 20A).
- Radio or Accessory Power Loss: Check RADIO or ACCY fuse (Interior Block, e.g., #16, #46 - 10A/20A).
- Headlights/Parking Lights Out: Check PARK LP fuse (Interior Block, typically #10 - 15A).
- Tail Lights Inoperative: Check TAIL fuse (Interior Block, typically #8 - 10A).
- Windshield Wipers Stopped: Check WIPER fuse (Interior Block, typically #5 - 25A) and WPR relay.
- Fuel Pump No Power: Check fuel pump fuse (Engine Compartment, often PUMPS fuse - 20A).
Inspecting and Replacing Fuses
Use fuse pullers (often included in the fuse box cover) or needle-nose pliers. Visually inspect the metal element inside the fuse plastic housing. A blown fuse will show a broken element or melted appearance.
- Exact Match Required: Replace only with a fuse of the identical amperage rating.
- Test Function: Reconnect battery negative cable after replacement and test the component.
Beyond Fuses: Relays and Maxi-Fuses
The diagram also shows relays (e.g., for wipers, cooling fans) and large Maxi-Fuses protecting high-current circuits like ABS, ignition. Testing relays is more complex but involves swapping with identical relays (if equipped). Maxi-fuses inspect similarly to standard fuses.
Critical Safety & Tips
- Disconnect Battery: Always disconnect the negative terminal first before fuse work.
- No Substitutions: Never use a higher amp fuse or substitute with metal foil.
- Diagram Accuracy: Refer to the diagram specific to your Trailblazer model and trim level (found in the owner's manual or inside the fuse box cover). Replacements are available from GM dealers.
- Underlying Cause: If the same fuse blows repeatedly, a wiring short or faulty component needs professional diagnosis.
Utilizing your fuse box diagram empowers cost-effective fixes for many common electrical issues. Keep spare fuses of common amperages handy.
