Locate the Fuse Box
The main fuse box in your 1997 Ford F150 is under the hood, near the driver's side firewall. A secondary fuse panel may sit behind the dash, accessible via the glove compartment or under the steering wheel.
Understand the Fuse Box Diagram

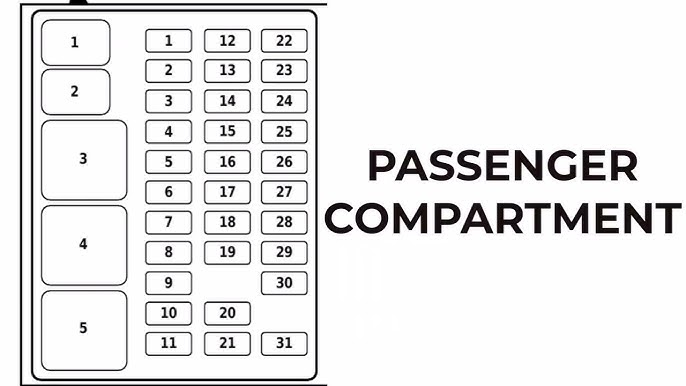

The fuse box cover features a printed diagram labeling each fuse location and its amperage rating. Common sections include power windows (fuse F5), headlights (fuse F10), and ignition system (fuse F15). Cross-reference this with your owner's manual for accuracy.
Step-by-Step Repair Procedure
- Identify the Problem Circuit: Diagnose symptoms like non-functional lights or accessories. Note which circuit is failing.
- Inspect and Remove the Fuse: Turn off the engine and remove the key. Use a fuse puller tool to extract the suspected fuse based on the diagram. Check for a broken filament or discoloration.
- Replace the Fuse: Insert a new fuse of identical amperage (e.g., 15A for F10). Ensure a snug fit and avoid higher ratings to prevent damage.
- Test the Fix: Reconnect the battery, start the vehicle, and verify operation of the affected circuit. If issues persist, recheck the diagram for related fuses or consult a wiring schematic.
Always wear gloves and eye protection when handling fuses to avoid electrical hazards. Dispose of blown fuses properly.
