Accessing the Radio Wiring Diagram
To resolve radio problems in your 2006 Chevy Silverado, first obtain the factory wiring diagram. Check the owner's manual or seek manufacturer-approved sources. Key components include the power supply, ground connections, and speaker wires.
Common Radio Problems and Diagnostic Steps
- No Power: Test fuse F15 (20A) in the interior fuse box with a multimeter.

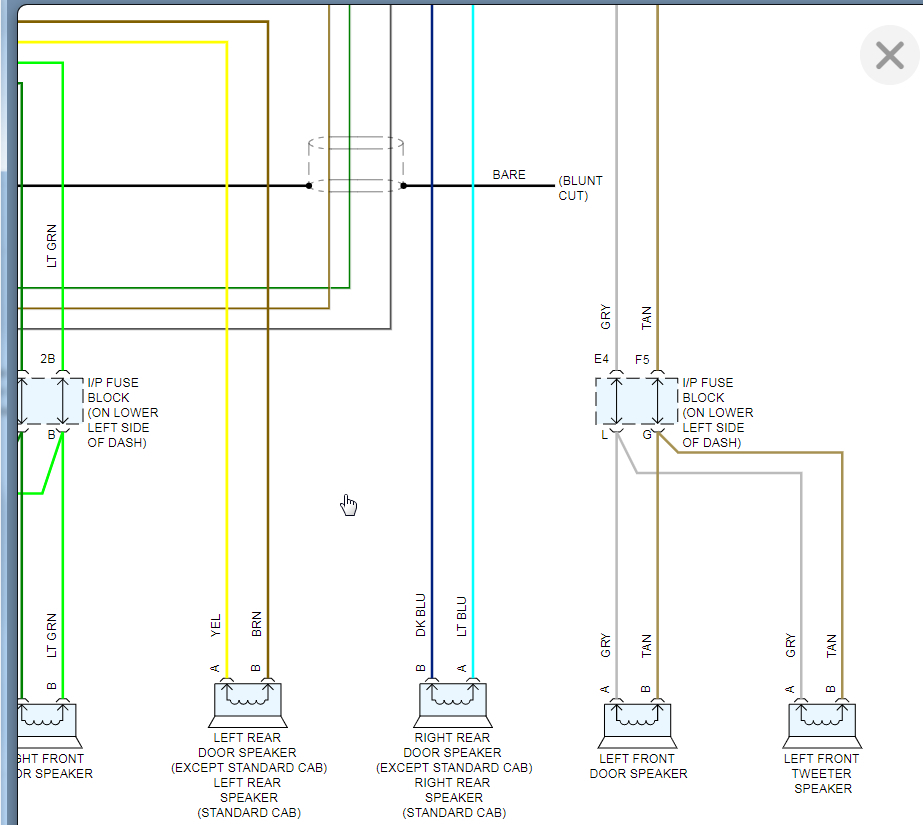

- Poor Sound Quality: Inspect speaker wires for shorts using the diagram to trace connections.
- Intermittent Operation: Verify ground points (G200 or G201) for corrosion and ensure solid connections.
Safe Repair Execution
Disconnect the battery before work. Use the diagram to identify wire colors: red for ignition-switched power, black for ground. Repair damaged wires by splicing with heat-shrink connectors, then test the system.
Preventing Future Issues
After fixing, secure all harnesses away from moving parts. Regularly inspect for wear. A multimeter is essential for continuous troubleshooting; consult the diagram for accurate readings.
