Maintaining proper brake booster vacuum integrity is critical for brake pedal feel and power assist in Ford 5.4L engines. A damaged or leaking vacuum hose requires prompt replacement. Follow these steps using a typical routing diagram description.
Understanding the Vacuum Hose Routing
The main vacuum supply hose connects the brake booster directly to the intake manifold. Common routing:
- Source: Fitting on the intake manifold (usually rear driver's side).
- Path: Routes downward behind the engine (near firewall/brake master cylinder).
- Check Valve: An inline one-way check valve is present along this hose.
- Termination: Large nipple on the front of the brake booster assembly.
Tip: Trace the existing hose visually before removal to confirm routing.
Required Tools & Parts
- New brake booster vacuum hose (correct length & ID for fittings)
- Safety glasses & Nitrile gloves
- Needle-nose pliers or small screwdriver
- Flashlight
- Rag
Replacement Procedure (5 Simple Steps)
Step 1: Locate & Disconnect Old Hose
- Identify the vacuum hose connecting the brake booster to the intake manifold.
- Pinch the small spring clip at the intake manifold fitting and pull the hose off.
- Pinch the spring clip at the brake booster nipple and pull the hose off. Note the inline check valve position.
Step 2: Remove the Inline Check Valve
- Carefully slide the metal or plastic spring clips off the old hose ends securing the check valve.
- Pull the check valve out of the old hose ends.
- Inspect the valve: Blow through one end; air should only flow one way.
Step 3: Transfer Check Valve to New Hose
- Push the check valve into one end of the new vacuum hose until fully seated.
- Ensure the valve direction is correct (arrow usually points towards intake manifold).
- Slide the spring clips back onto the new hose over the check valve ends.

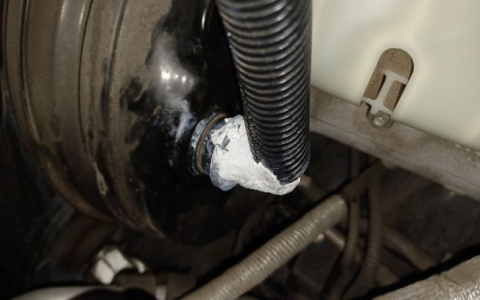

Step 4: Connect Hose to Brake Booster
- Press the end of the new hose without the check valve (or the end the arrow points away from) firmly onto the brake booster nipple. Listen for the spring clip to snap into place.
Step 5: Connect Hose to Intake Manifold
- Route the hose safely away from hot/exhaust components, matching the original path.
- Press the end of the new hose with the check valve (arrow pointing towards the intake) firmly onto the intake manifold fitting. Listen for the clip to engage.
- Pull gently on connections to ensure they are secure.
Important Considerations
- Check Valve Direction: Incorrect installation prevents vacuum reserve buildup. Arrows on the valve must point TOWARDS the intake manifold.
- Post-Installation Check: Start the engine. Brake pedal should feel firm after 1-2 presses with engine off and drop slightly lower/have normal assist when running. Listen near connections for hissing indicating leaks.
- Exact Routing: Minor routing differences exist across model years. The firewall bulkhead area is critical.
