For optimal engine performance in the 2006 Kia Sorento, correct spark plug wire routing is essential. The firing order sequence directly impacts combustion timing and engine smoothness.
2006 Kia Sorento Firing Order
The firing order for all 2006 Kia Sorento engines (both the 2.4L 4-cylinder and the 3.3L V6) is:
1 - 3 - 4 - 2

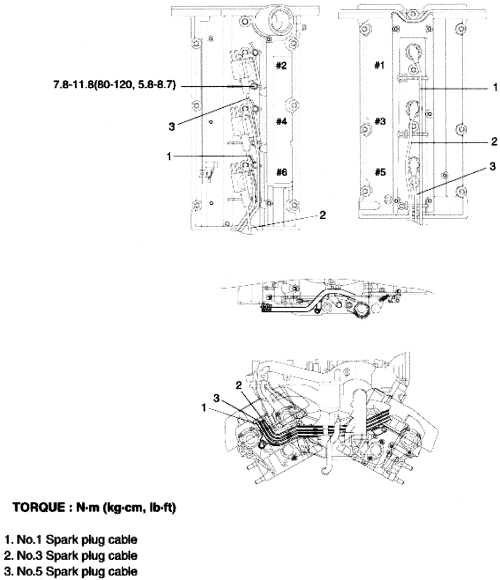

Cylinder Identification (V6 Engine)
When facing the engine (standing at the front bumper looking towards the rear of the vehicle):
- Front Bank (Closest to Radiator): Cylinder #2 (Passenger Side), Cylinder #4 (Driver Side), Cylinder #6 (Driver Side)
- Rear Bank (Closest to Firewall): Cylinder #1 (Passenger Side), Cylinder #3 (Passenger Side), Cylinder #5 (Driver Side)
Therefore, cylinder numbering is:
- Cylinder 1: Rear Bank, Passenger Side (Frontmost in rear bank)
- Cylinder 2: Front Bank, Passenger Side
- Cylinder 3: Rear Bank, Passenger Side (Middle in rear bank)
- Cylinder 4: Front Bank, Driver Side
- Cylinder 5: Rear Bank, Driver Side (Rearmost in rear bank)
- Cylinder 6: Front Bank, Driver Side
Cylinder Identification (2.4L 4-Cylinder Engine)
- Cylinder 1: Closest to the timing belt/pulley end.
- Cylinder 2: Next after cylinder 1.
- Cylinder 3: Next after cylinder 2.
- Cylinder 4: Closest to the transmission/flywheel end.
Applying the Firing Order
- Distributor/V6 Coil Packs: Route wires only in the sequence 1 - 3 - 4 - 2 starting from the designated terminal on the distributor cap or the specific coil pack terminal corresponding to cylinder 1.
- COP (Coil-On-Plug) Systems: The firing order is managed by the ECU; physically, each coil plugs directly onto its spark plug. Correct installation ensures cylinders fire in 1-3-4-2 sequence.
Critical Considerations
- Disconnect Battery: Always disconnect the negative battery terminal before servicing ignition components.
- Label Wires: Label each spark plug wire clearly before removal if replacing or inspecting.
- Double-Check Routing: Incorrect routing causes severe misfires, engine damage, and catalytic converter damage. Verify twice against the cylinder diagram and firing sequence.
- Consult Manual: Always refer to the vehicle's specific repair manual for diagrams and torque specifications.
- Correct Parts: Use the exact spark plug type and gap specified for the 2006 Sorento engine variant.
