Locating the GMC blower motor resistor wiring diagram requires understanding component placement and circuit connections. The resistor assembly's position dictates relevant wiring access points.

Resistor Location by Model

Common GMC model locations:

  • Sierra/Silverado (GMT800, GMT900, K2XX): Passenger footwell, above blower motor, mounted on HVAC housing. Access often behind glove box.
  • Yukon/Suburban/Tahoe: Typically near the blower motor behind the glove box area, secured to the HVAC case.
  • Savana/Express Vans: Underhood, mounted on the HVAC blower module near the firewall (passenger side), or behind glove box.

Wiring Diagram Essentials

Identify the resistor connector:

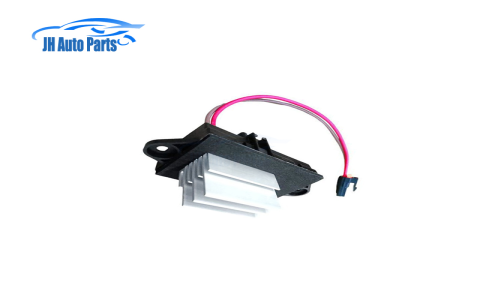

GMC Blower Motor Resistor Wiring Diagram Location Guide Where to Find Details.
  • Connector Position: Directly attached to resistor module.
  • Terminal Functions (Typical 4/5 pin):
    • Power Feed from HVAC Controls (Variable)
    • Ground (Common)
    • Output to Blower Motor (High Speed)
    • Control Inputs from Switch/Low-Med Circuits

Diagram & Pinout Access

Obtain precise details through these sources:

  • Factory Service Manual (FSM): Primary source. Diagrams locate the resistor, illustrate wiring routes, connector views, and pin functions. Manuals are model/year/specific.
  • Reputable Automotive Wiring Databases: Provide standardized diagrams. Search using Vehicle Identification Number (VIN) for accuracy.
  • Resistor Connector: Physical inspection reveals wire colors and cavity positions, aligning with pinouts in diagrams.

Key Considerations

  • Ground Points: Diagrams identify grounding locations critical for testing integrity.
  • Power Sources: Trace fused power (often "HVAC BATT") back through diagrams.
  • Thermal Protection: Identify link/cutoff circuits integrated within the harness.

Caution: Always disconnect battery ground before inspection or replacement.
