Confirming Correct Serpentine Belt Path

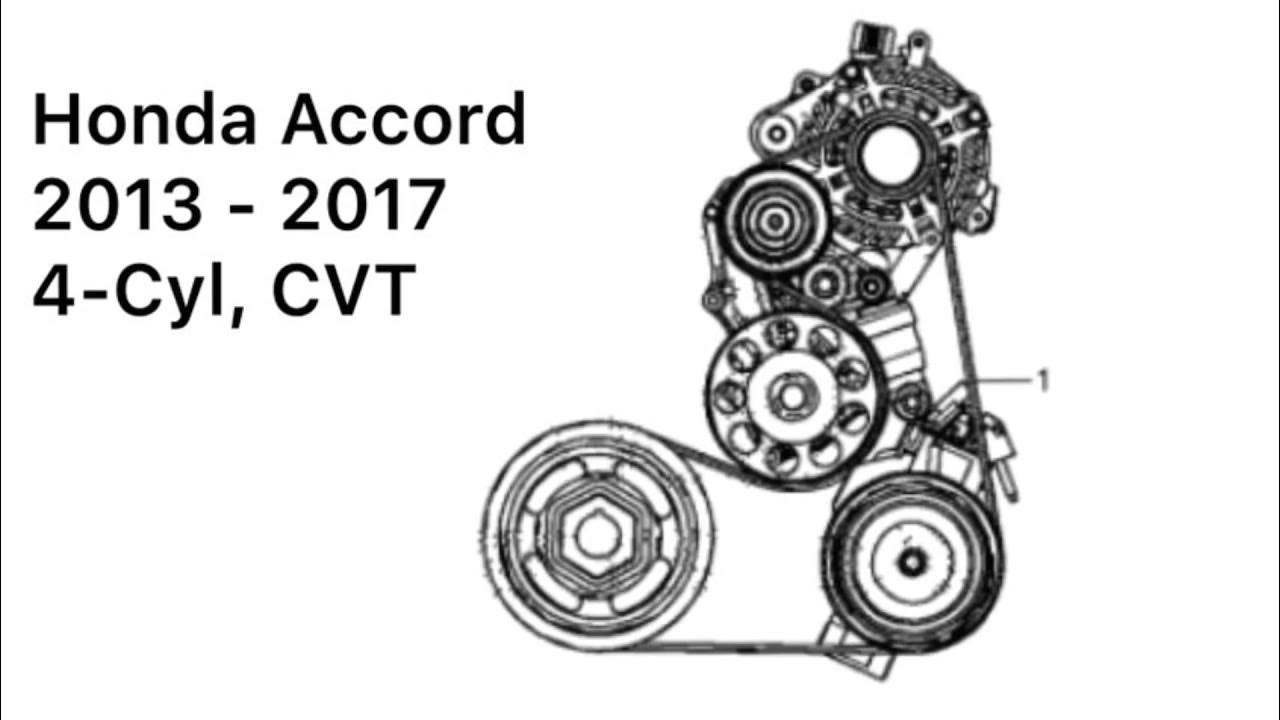

Verify routing against the underhood diagram. Common errors on 2.4L engines (K24 series) include incorrect threading around the automatic tensioner or misalignment of the belt between power steering pump and A/C compressor. Ensure the ribbed side engages all grooved pulleys.
Identifying Tensioner Failure Symptoms
- Uneven belt wear with missing ribs or glazing indicates tensioner arm oscillation
- Visible wobble in tensioner pulley during operation
- Inconsistent tension when testing with belt tension gauge (should maintain 300-400 N)
Diagnosing Accessory Pulley Issues
Rotate each pulley manually with belt removed:
- Seized bearings create drag on serpentine belt
- Lateral play exceeding 1mm indicates worn pulley bushings
- Corrosion buildup on idle pulleys alters belt tracking
Troubleshooting Belt Noise
Apply water to belt ribs while engine runs:
- Squeal suppression confirms belt glazing
- Persistent noise indicates misalignment or tensioner fault
- Chirping sounds suggest contaminated pulleys (oil/coolant leaks)
Post-Installation Verification
After correction, run engine 10 minutes and re-inspect:
- Measure belt deflection midpoint - should not exceed 10mm under firm thumb pressure
- Check harmonic balancer for separation causing belt walk
- Confirm all pulleys rotate in correct directional plane
