This guide provides straightforward methods to access the serpentine belt diagram for the 2012 Chevy Impala 3.6L V6 engine. Correct belt routing prevents damage and ensures reliable accessory function.
Locate the Diagram Easily
- Review Your Owner's Manual: Check the glove compartment for the printed manual. Diagrams are often in the maintenance section.
- Inspect Under the Hood: Open the hood and examine labels on the radiator support, inner fender, or fuse box cover. Many models have an adhesive diagram depicting pulley routing.
- Reference Repair Manuals: Purchase aftermarket guides like Haynes or Chilton, specifically for the 2012 Impala 3.6L. These include detailed illustrations and step-by-step procedures.
- Use Online Resources: Search automotive forums or databases using the query "2012 Chevy Impala 3.6L serpentine belt diagram." Focus on reputable sources for accuracy.
DIY Installation Notes

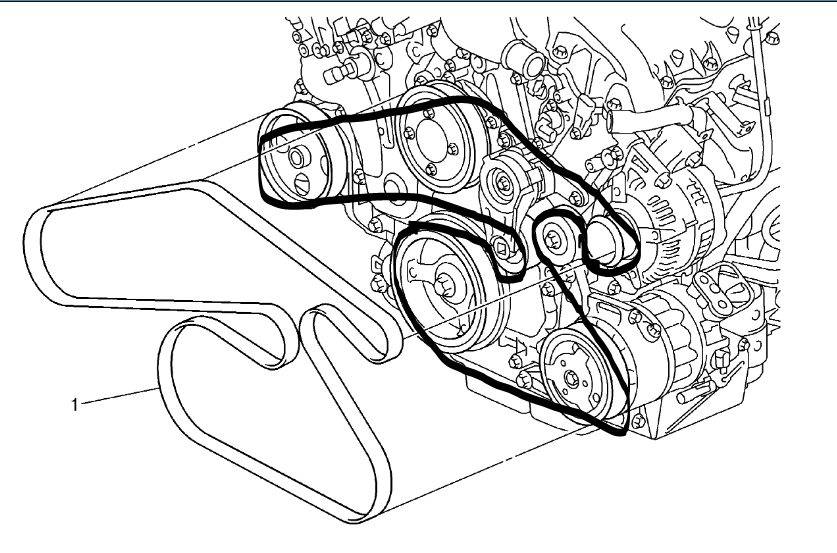

For the 3.6L engine, the belt routes around the crankshaft pulley, tensioner, alternator, and air conditioning compressor. Confirm tension using a tensioner gauge or by rotating pulleys smoothly post-installation.
Prioritize safety: disconnect the battery and ensure the engine is cool before starting work.
