For the 2003 Toyota Corolla serpentine belt diagram, utilize these authoritative and efficient sources:
Optimal Sources
- Toyota Factory Service Manual (FSM): The definitive source for accurate diagrams and installation procedures specific to your 1ZZ-FE (most common) or 2ZZ-GE engine. Diagrams clearly depict routing paths.
- Reputable Automotive Repair Databases: Professional-level platforms provide precise diagrams and service information, ensuring reliability.
- Haynes or Chilton Repair Manuals: Widely available aftermarket manuals include detailed diagrams and routing instructions for the 2003 Corolla.
- Major Auto Parts Retailers' Free Lookup Tools: Provide quick visual diagrams based on your specific vehicle details (engine/options). Prioritize high-quality chains.
Diagram Details to Confirm
- Engine Type: Identify if yours is the standard 1.8L 1ZZ-FE or the high-performance 1.8L 2ZZ-GE.
- A/C Compressor: Confirm its presence (affects routing).
- Diagram Type: Clear sketches or photos showing the exact pulley sequence and tensioner position.

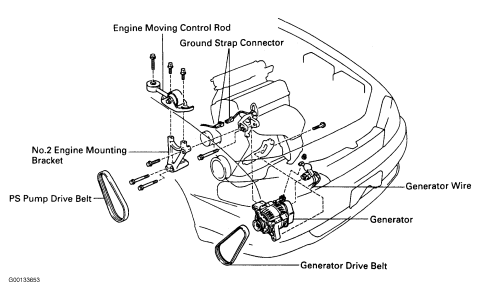

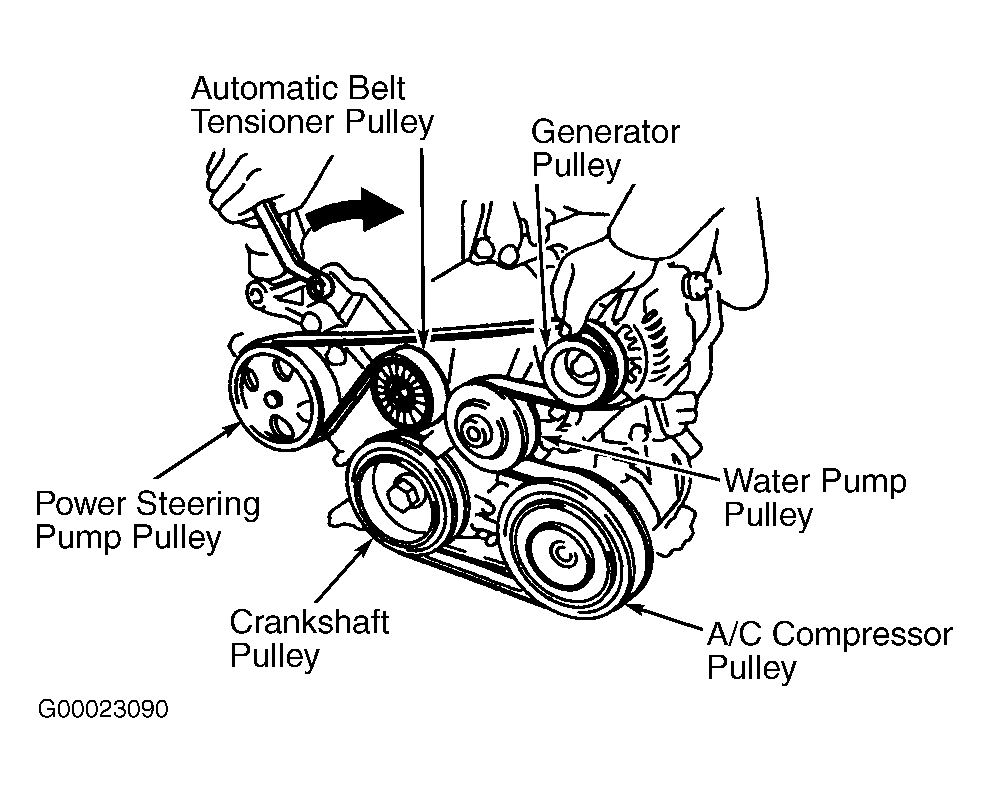

Typical Routing (Verify with Source)
For a standard 2003 Corolla 1ZZ-FE with A/C, a common path is:
Crankshaft Pulley (Bottom) → Power Steering Pump → A/C Compressor → Idler Pulley (if equipped) → Alternator → Coolant Pump Pulley → Tensioner Pulley.
Critical Installation Tip
Carefully release tensioner pulley pressure using the correct tool, route the belt meticulously according to the diagram, then slowly release the tensioner. Double-check the belt is seated correctly in every groove before starting the engine.
