Replacing the serpentine belt on your 2009 Kia Spectra requires precise routing and tensioning. Follow this procedure using the engine bay diagram sticker as your primary reference.
Tools Required

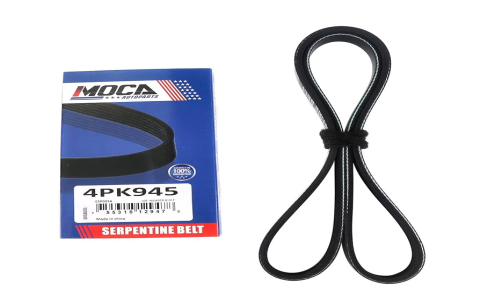

- New serpentine belt (Gates K060775 or equivalent)
- 14mm socket/breaker bar (for tensioner)
- Torque wrench
- Gloves and safety glasses
Replacement Procedure
Step 1: Access Belt System
Park on level ground, engage parking brake, and open hood. Locate the serpentine belt routing diagram sticker near the radiator support.
Step 2: Release Tension
Identify the spring-loaded tensioner pulley. Insert breaker bar into the 14mm tensioner bolt and rotate clockwise to relieve belt tension.
Step 3: Remove Old Belt
Slip the belt off pulleys while maintaining tensioner pressure. Note the exact routing pattern using the diagram before proceeding.
Step 4: Install New Belt

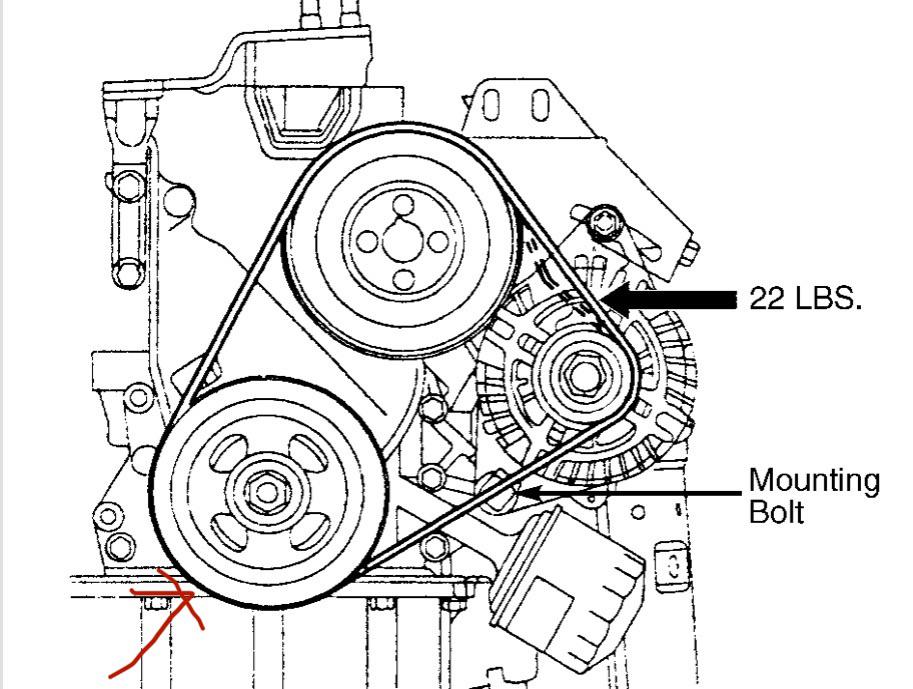

Route the new belt according to the diagram's specified path, starting at the crankshaft pulley. Leave the tensioner pulley for last. Ensure ribs seat fully in all pulley grooves.
Step 5: Apply Tension
Rotate the tensioner clockwise again and slip the belt onto its pulley. Slowly release the tensioner to apply automatic tension.
Verification & Testing
- Verify belt alignment on all pulleys matches diagram
- Manually rotate crankshaft 2 full rotations to check tracking
- Start engine and observe for 90 seconds: listen for squealing and check for harmonic wobble
Critical Notes: Never use screwdrivers for leverage on tensioners. Replace idler pulleys if bearing noise exists. Inspect new belt for manufacturing defects before installation. Diagram variations exist between 2.0L Beta II engines - your underhood sticker is definitive.
