Understanding P2419 Code
The P2419 diagnostic trouble code indicates an electrical fault in Toyota's Evaporative Emission System Switching Valve "A" Control Circuit. This typically points to wiring issues, a malfunctioning valve, or faulty ECM communication.
Required Tools
- OBD-II scanner
- Digital multimeter
- Basic hand tools (screwdrivers/wrenches)
- Wire continuity tester
Diagnostic Steps Before Reset

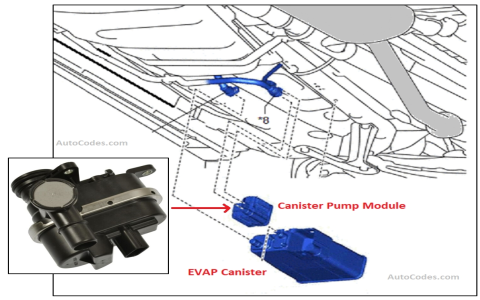

1. Preliminary Check: Inspect the EVAP canister vent valve (located near the fuel tank) for physical damage, disconnected hoses, or corrosion. Ensure electrical connectors are fully seated.
2. Wiring Verification:
- Disconnect battery negative terminal
- Test circuit resistance between valve connector and ECM using multimeter (spec: 0-5Ω)
- Check for short-to-ground (should show OL/open circuit)
- Verify 12V power supply at harness with ignition ON
3. Component Testing: Measure valve solenoid resistance (compare to factory specs, typically 20-30Ω). Apply 12V directly to valve terminals - audible click confirms mechanical function.
Reset Procedure
After confirming repairs:
- Reconnect all components and battery
- Connect OBD-II scanner to DLC3 port
- Navigate to DTC Clear function
- Perform active code reset (avoid generic erase - use Toyota-specific mode if available)
Alternative method: Disconnect battery negative cable for 15+ minutes (resets adaptive memory but may require ECU relearn procedures).
Verification & Prevention
Conduct a drive cycle: Cold start, idle 3 minutes, drive at varied speeds for 10 miles. Rescan to confirm permanent code clearance. Prevent recurrence by:
- Applying dielectric grease to connectors
- Securing wiring away from heat sources
- Replacing damaged wire conduits
Critical Note: Persistent P2419 after reset indicates unresolved electrical fault requiring professional diagnostics. Never ignore recurring codes - could trigger limp mode.
