Setting the timing chain marks correctly on a Dodge 4.7L V8 engine ensures optimal performance and prevents internal damage due to misalignment. Follow these precise steps based on standard procedures.
Essential Preparation
Position the engine at Top Dead Center (TDC) for cylinder number one. Verify the crankshaft keyway aligns with the mark on the engine block or balancer.
- Disconnect the battery and remove components obstructing access.
- Use a wrench to rotate the crankshaft clockwise until TDC is confirmed via the timing cover notch.

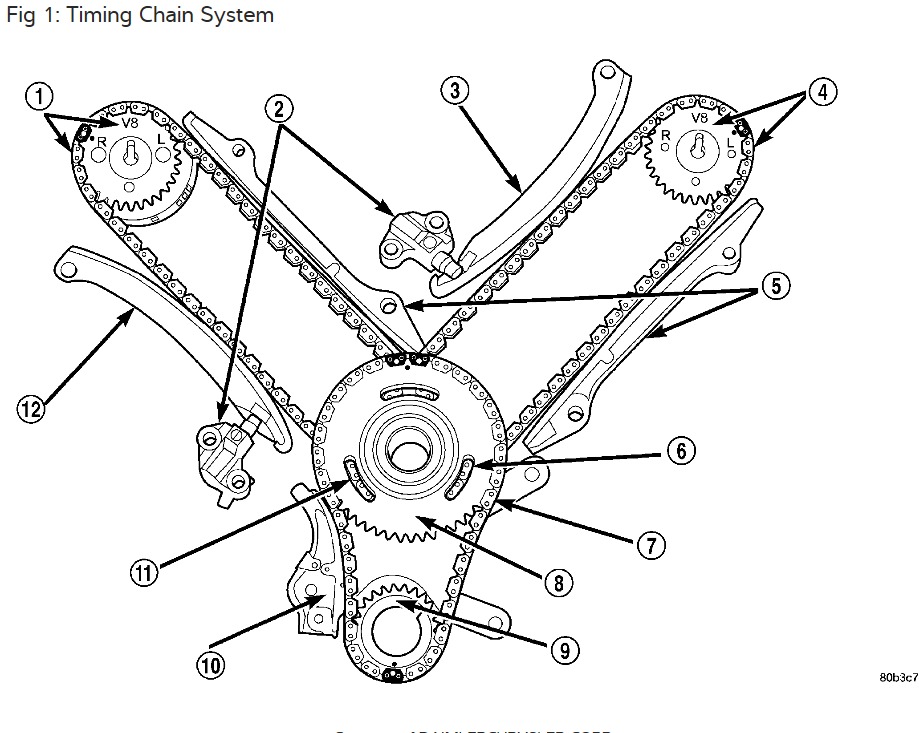

Aligning Camshaft Sprocket Marks
Locate the timing marks on both camshaft sprockets. Ensure the chain is tensioned properly during this step.
- Driver's side sprocket mark should face upward at 12 o'clock.
- Passenger's side sprocket mark should face downward at 6 o'clock.
Adjust sprockets so marks point directly toward each other when the chain is installed.
Setting the Crankshaft Sprocket
Align the crankshaft sprocket keyway with the dot or dimple on the timing chain. Secure the sprocket without forcing it.
- The chain link with a painted mark or indicator must seat on the sprocket tooth correctly.
Verification and Final Steps
Rotate the crankshaft two full revolutions by hand to check for smooth movement and realignment at TDC.
- If binding occurs, recheck all marks immediately.
- Reinstall covers and components, then test with a timing light when possible.
Note: Always torque bolts to manufacturer specifications and inspect for chain slack before startup.
