Locate and Access the Fuse Boxes
Identify Location: The 1997 Ford F150 has two primary fuse panels.
- Under-hood (Power Distribution Center): Located near the battery on the driver's side. Flip open the large black cover.
- Passenger Compartment: Located on the lower left side of the dashboard (driver's side, near the parking brake release). Release the catch and pull the panel door down towards the floor.

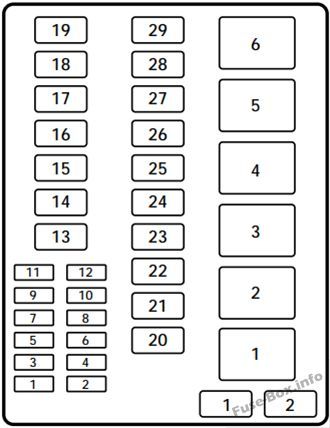

Use the Fuse Box Diagram
Find the Diagram: Fuse panel covers have a diagram molded into the plastic or printed on the inside. Under-hood diagrams are often also printed on the cover.
Match the Diagram: Diagrams show the layout and purpose of each fuse slot. Note the fuse slot numbers and corresponding amperage ratings (e.g., F1.15 = Slot 1, 15 Amp).
- Component Identification: Locate the name of the malfunctioning component (e.g., "Radio", "Power Windows", "Cig Ltr") on the diagram.
- Slot Identification: Find the number assigned to that component on the diagram.
- Fuse Rating Verification: Note the amperage rating listed for that slot (e.g., 10A, 15A, 20A, 30A).
Check and Replace a Fuse
Disconnect Power: Always disconnect the negative battery cable before replacing fuses.
Locate the Correct Fuse Slot: Using the diagram, physically find the numbered slot identified for your component.
Remove the Fuse: Use the fuse puller tool typically clipped inside one of the fuse box covers or needle-nose pliers. Pull the fuse straight out.
Inspect the Fuse: Examine the metal element inside the transparent plastic housing. A blown fuse will have a broken or melted element. Compare visually to a known good fuse.
Replace with Correct Fuse: Insert a new fuse of the EXACT same amperage rating into the correct slot. Ensure it's fully seated. Never use a higher amperage fuse.
Reconnect Battery & Test: Reconnect the negative battery cable. Test the component to see if function is restored.
Key Tips for Success
- Amperage is Critical: Always match amperage exactly. Wrong amperage risks fire.
- Verify Component Name: Double-check the diagram label matches the malfunctioning system.
- Slot Confirmation: Confirm the slot number physically matches the diagram number.
- Fuse Puller: Use the tool to avoid damaging fuse slots.
- Persistent Issues: If replacing the fuse doesn't work, or it blows again immediately, the underlying electrical fault causing the overload needs professional diagnosis.
