Proper spark plug wire installation is critical for smooth engine operation in your 2006 Ford Explorer 4.0L V6. Adhering to the correct firing order ensures optimal performance and prevents misfires.
2006 Ford Explorer 4.0L V6 Firing Order
The correct firing order for this engine is: 1-4-2-5-3-6

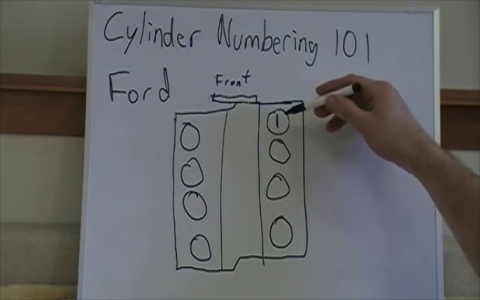

Cylinder Identification
- Facing the engine from the front of the vehicle (driver's side to passenger's side):
- Left (Passenger) Bank: Cylinder 1 (Front), Cylinder 2 (Middle), Cylinder 3 (Rear)
- Right (Driver) Bank: Cylinder 4 (Front), Cylinder 5 (Middle), Cylinder 6 (Rear)
Ignition Coil Pack Terminal Layout
The coil pack terminals correspond directly to the cylinder numbers (1 through 6). The coils are typically arranged in a row.

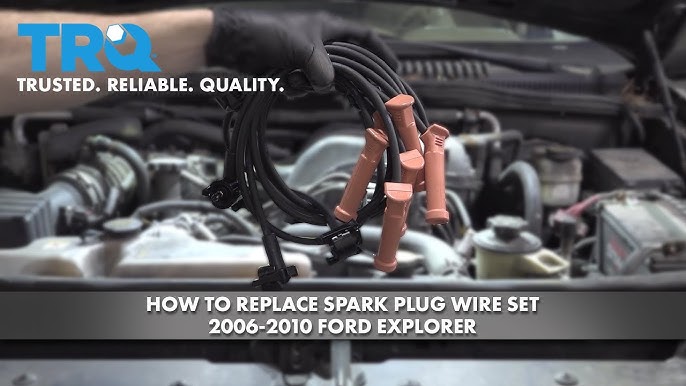

Spark Plug Wire Installation Steps
- Safety First: Disconnect the negative battery cable.
- Work on One Wire: Remove and replace wires ONE AT A TIME to prevent mixing them up.
- Locate Cylinder 1 Wire: Identify the existing wire from Cylinder 1 (front cylinder on passenger side bank) to the coil pack terminal marked "1".
- Install New Wire: Connect one end of the new wire securely to the Cylinder 1 spark plug. Connect the other end firmly to the coil pack terminal "1".
- Continue in Order:
- Follow Cylinder 1 with the wire for Cylinder 4 (front cylinder on driver side bank) to coil terminal "4".
- Next, install the wire for Cylinder 2 (middle cylinder on passenger side bank) to coil terminal "2".
- Follow with Cylinder 5 (middle cylinder on driver side bank) to coil terminal "5".
- Next, install Cylinder 3 (rear cylinder on passenger side bank) to coil terminal "3".
- Finish with Cylinder 6 (rear cylinder on driver side bank) to coil terminal "6".
- Double-Check Connections: Ensure every wire click is seated firmly on both the spark plug and coil pack terminals.
- Routing: Route wires neatly along the factory paths. Avoid sharp edges, hot exhaust manifolds, and ensure wires aren't stretched taut. Use any factory clips or separators.
- Reconnect Battery: Reattach the negative battery cable.
Critical Tips
- Use Correct Parts: Ensure wires are specifically for the 2006 Explorer 4.0L V6.
- Check Condition: Inspect the coil pack terminals and spark plug boots/terminals for damage or corrosion before installing new wires.
- Anti-Seize Caution: Do NOT use anti-seize on the spark plug threads or boot ends unless the wire manufacturer explicitly instructs its use on boots. It can lead to increased resistance and misfires.
- Boot Lubricant: Apply a thin layer of dielectric grease inside the rubber boots of the new spark plug wires before seating them on the spark plugs and coil pack terminals. This prevents sticking, aids future removal, and improves electrical sealing.
