For the 2014 Dodge Journey equipped with the 2.4L engine, the accessory drive belt (serpentine belt) drives key components like the alternator, power steering pump, water pump, and air conditioning compressor.
Belt Diagram Location
The precise routing diagram is located in the vehicle's owner's manual, typically within the Maintenance section under engine compartment illustrations. Consult your manual first.
If the manual is unavailable, look for a decal or sticker affixed directly to the vehicle:
- Primary Location: Check the underside of the hood, near the latch release mechanism or on a radiator support crossmember.
- Secondary Location: Sometimes found on the top of the radiator fan shroud or near the strut tower on the driver's side.
Physical Belt Location in Engine Bay

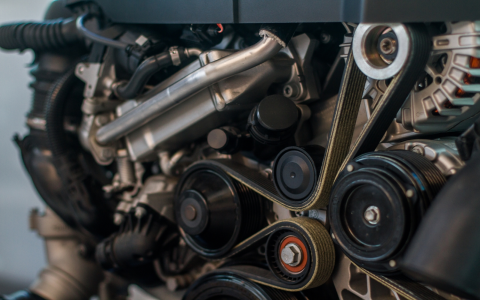

The serpentine belt runs around the pulleys on the front (accessory side) of the engine. Key landmarks:
- Largest Bottom Pulley: Crankshaft Damper.
- Driver's Side Top Pulley: Alternator.
- Passenger Side Top Pulley: Air Conditioning Compressor.
- Tensioner Pulley: Automatic Spring-Loaded Tensioner, usually located centrally or slightly towards the driver's side above the crankshaft.
- Idler Pulley(s): Additional guide pulley(s), position varies slightly by model year.
The belt follows a serpentine path connecting all these pulleys. The automatic tensioner maintains proper tightness.
Important Considerations
- Always identify the routing before removing the old belt. Sketch it or take a picture if the diagram sticker is missing or illegible.
- Newer models use a stretch-fit belt requiring a special tool for installation.
- Inspect the belt for cracks, fraying, glazing, and rib separation. Check tensioner and idler pulleys for smooth rotation and bearing noise.
- Working on a cold engine is safer to prevent burns. Use caution near rotating components.
Require a description of the diagram path? Provide your engine compartment access for clarification.
