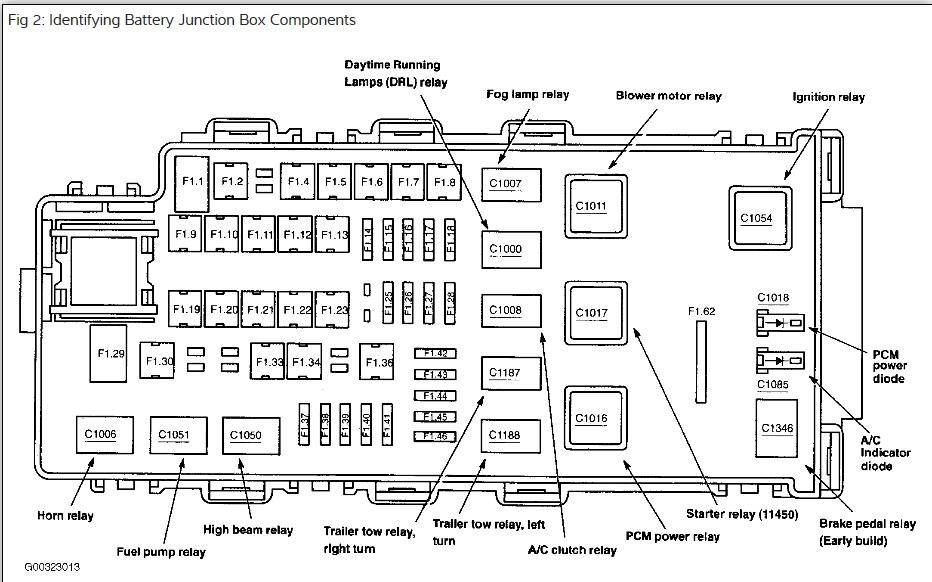

Power Distribution Box Location
The main fuse box for your 2004 Ford Explorer is located under the hood on the driver's side near the battery. It handles high-amperage circuits.
Interior Fuse Panel Location
The interior fuse panel is situated under the dashboard on the driver's side, accessible for cabin-related components.
Fuse Map Reference
Use this fuse map for quick identification. Disconnect the battery before replacing any fuse.
- Fuse 1 (10A): Brake lamps and shift interlock.
- Fuse 2 (20A): Power point/cigarette lighter.
- Fuse 3 (15A): Interior lights and running boards.
- Fuse 4 (25A): Heated seats.
- Fuse 5 (10A): Airbag module.
- Fuse 6 (20A): Audio system amplifier.
- Fuse 7 (15A): Power mirrors and windows switches.
- Fuse 8 (10A): Instrument cluster memory.
- Fuse 9 (15A): Turn signals and hazard flashers.
- Fuse 10 (20A): Radio and navigation system.
Refer to your owner's manual for additional details and fuse box diagrams.
