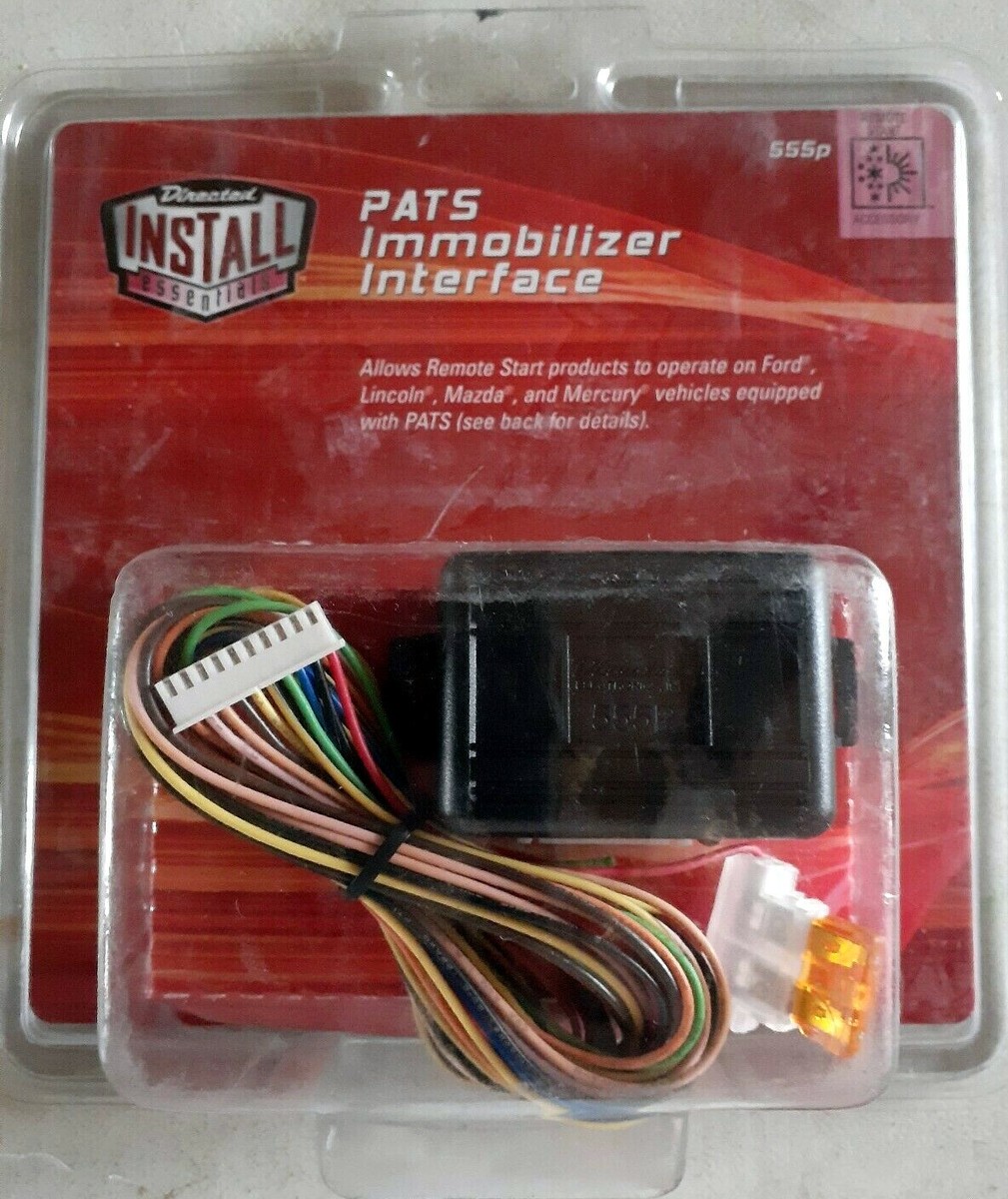

When selecting a wiring diagram for a PATS (Passive Anti-Theft System) bypass module installation, the choice between price and quality directly impacts installation success and vehicle security.
The Cheap Wiring Diagram Reality
Low-cost or free diagrams are prevalent. They typically offer:
- Generic Templates: Often recycled for multiple vehicle makes/models, lacking specificity.
- Unverified Sources: Found on forums, free PDF libraries, or bundled with poorly supported modules; accuracy is frequently questionable.
- Incomplete/Misleading Data: May omit critical steps, list incorrect wire colors/pinouts, or fail to indicate essential connections (e.g., data lines).
Result: High risk of non-functioning bypass, fried modules, immobilizer faults, wasted time troubleshooting, or even compromised vehicle security.
The Premium Wiring Diagram Value
Higher-priced diagrams (often included with quality modules or reputable service access) provide:
- Vehicle-Specific Accuracy: Developed and validated for specific year/make/model/sub-model combinations.
- Brand Validation: Supplied directly by established remote start/bypass manufacturers (e.g., Compustar, Directed, Fortin) as part of their support.
- Detailed Clarity: Include precise wire locations, colors, pin assignments, connector views, step-by-step procedures, and software configuration notes.
- Technical Support Backing: Access to manufacturer support is contingent on using their official diagrams.
Result: Reliable installation, fewer errors, faster completion, functional PATS bypass, and preserved vehicle integrity.
Price vs. Quality: The Verdict
Quality is unequivocally the better choice. Consider:
- Risk Mitigation: An incorrect cheap diagram risks damaging a module costing $50-$150+ and potentially causing expensive vehicle diagnostics/repairs. Premium diagram costs ($10-$40, often bundled) are minimal insurance.
- Time is Money: Hours spent debugging a faulty installation due to a poor diagram far outweigh the initial savings.
- Reliability & Security: Quality diagrams ensure the PATS bypass functions reliably and integrates correctly with the vehicle's security system. Incorrect wiring can leave the vehicle immobilized or insecure.
- Long-Term Cost: Premium diagrams from reputable sources increase the likelihood of a successful, one-time installation versus potential costly rework.
Investing in a high-quality, vehicle-specific wiring diagram from a reputable source is not an expense; it's essential for a professional, secure, and successful PATS bypass module installation. Cutting corners here frequently leads to significantly higher total costs and frustration.
