Why Know the Firing Order First?
Replacing the distributor cap on a 1997 Ford F-150 with a 4.6L V8 engine requires knowing the firing order beforehand. Incorrect wire connections cause misfires, poor engine performance, or even damage. Always verify the order to avoid costly mistakes and ensure smooth operation.
1997 Ford F-150 4.6L Firing Order

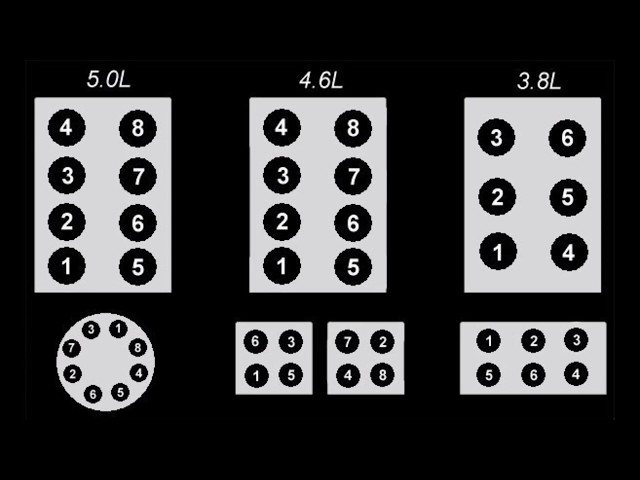

The firing order for the 4.6L V8 engine is 1-3-7-2-6-5-4-8. Cylinders are numbered:
- Passenger side (front to back): 1, 2, 3, 4
- Driver side (front to back): 5, 6, 7, 8
Adhere to this sequence exactly when transferring spark plug wires to the new cap to maintain ignition timing.
Steps for Replacing the Distributor Cap
Preparation: Disconnect the battery negative terminal. Locate the distributor; mark each spark plug wire position on the old cap for reference.
Replacement Process:
- Remove old wires one by one, following the marked firing order.
- Unscrew and replace the distributor cap.
- Connect new wires to the new cap in the 1-3-7-2-6-5-4-8 sequence.
- Reconnect the battery and test the engine.
Double-check connections before starting to prevent errors.
Key Tips for Success
Always label wires during removal. Use a diagram if available. If the engine runs rough post-replacement, re-verify the firing order and wire connections before diagnosing further issues.
