For the 2004 Pontiac Grand Prix with the common 3.8L V6 engine, installing the serpentine belt requires a precise diagram for routing. Below is a professional guide to ensure a smooth installation.

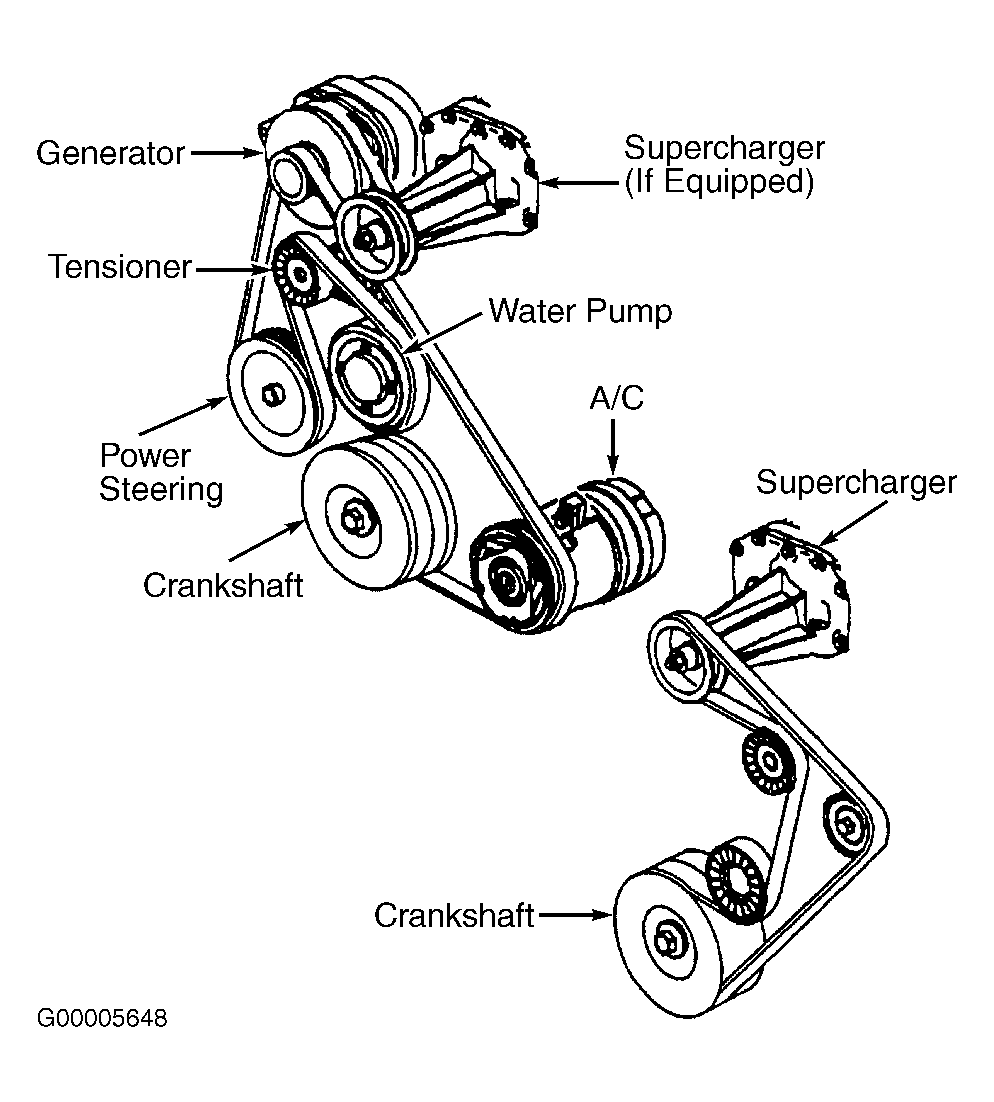

Serpentine Belt Diagram Details
The routing path is essential. For standard configurations, follow this sequence as the "diagram" reference:
- Crankshaft Pulley → Water Pump Pulley → Power Steering Pump Pulley
- Power Steering Pump Pulley → Tensioner Pulley → Alternator Pulley
- Alternator Pulley → Idler Pulley → A/C Compressor Pulley
- A/C Compressor Pulley back to Crankshaft Pulley
Note: Always verify belt routing against your engine's labeling or a printed diagram from the vehicle manual. Diagrams vary slightly, so prioritize manual-based sources.
Installation Steps
Perform with engine off and cooled. Wear gloves and safety glasses.
- Relieve tension: Locate the serpentine belt tensioner arm. Use a belt tensioner tool to rotate it counterclockwise, releasing pressure, and slip off the old belt.

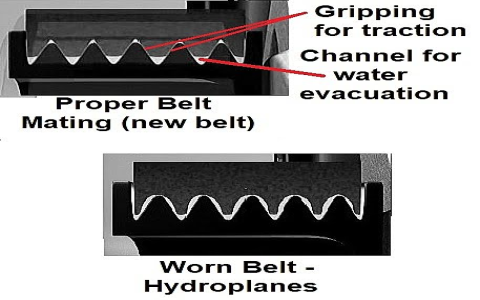

- Route new belt: Follow the above diagram sequence precisely. Align ribs with pulley grooves, starting from the crankshaft.
- Apply tension: Slowly rotate the tensioner arm counterclockwise again. Slip the belt onto the last pulley. Release the tensioner to secure the belt. Check for proper alignment— all ribs should seat correctly.
- Inspect and test: Ensure the belt is snug without slipping. Manually rotate pulleys to detect binding. Start the engine and observe for smooth operation without squeaks.
Critical Precautions
Avoid shortcuts: Incorrect routing or tension can damage pulleys or cause belt failure. Double-check routing against manual specifications. Replace tensioner if worn— inspect for cracks or weak spring action. Use OEM or high-quality replacement belts for durability. If diagram conflicts arise, refer to professional repair databases for confirmation.
