Serpentine Belt Routing Overview
The serpentine belt in the 2001 Ford Taurus powers essential components like the alternator, power steering pump, and air conditioning compressor. Correct routing ensures optimal accessory function and engine efficiency.

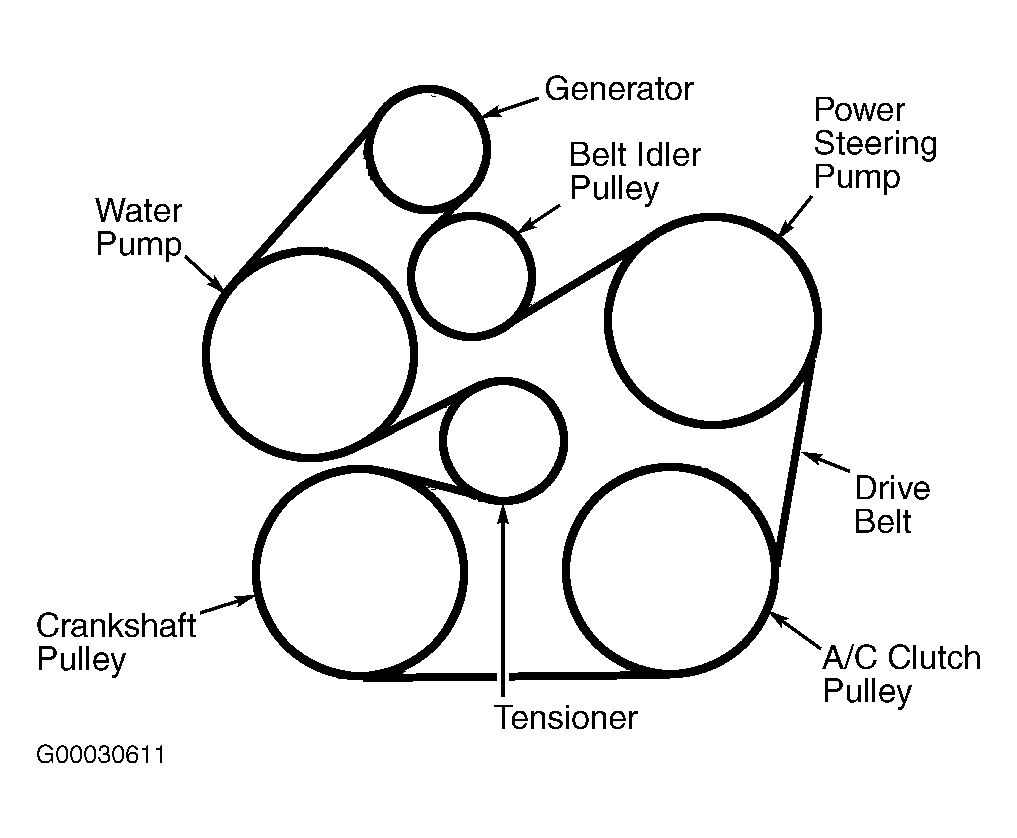

Key Routing Diagram Details
For the standard V6 engine model, the belt path traces a sequential route. Position the pulleys and belt as follows:
- Begin at the crankshaft pulley.
- Route to the alternator pulley.
- Proceed to the power steering pump pulley.
- Move to the air conditioning compressor pulley.
- Circle around the idler pulley.
- Return to the crankshaft pulley.
Verify against the underhood sticker diagram for exact alignment, as engine variations exist.
Replacement Guidance
Follow these professional steps for safe and efficient belt replacement:
- Relieve tension using a compatible belt tensioner tool.
- Remove the old belt without dislodging other components.
- Thread the new belt precisely along the described path.
- Engage the tensioner to secure the belt in place.
- Check seating on all pulleys before starting the engine.
Prioritize safety by disconnecting the battery and wearing protective gear during work.
