Incorrect firing order diagrams for the GM 3800 Series II engine frequently cause misfires, rough idle, and backfires. Follow these targeted steps to resolve wiring sequence errors.
Confirm Factory Diagram Source
Immediately disregard generic online diagrams. Always refer to the Underhood Emissions Label or the official GM service manual for your specific model year and vehicle application (e.g., Buick Park Avenue, Pontiac Grand Prix). Variations exist.
Validate Actual Wiring Sequence
Physically trace each spark plug wire from the ignition coil pack to the corresponding cylinder:
- Coil Pack Terminals: Identify terminals clearly marked 1-2-3 (Bank 1) and 4-5-6 (Bank 2).
- Cylinder Identification: Cylinders 1-2-3 are front bank (transmission side), cylinders 4-5-6 are rear bank (belt side). Cylinder 1 is driver side front.

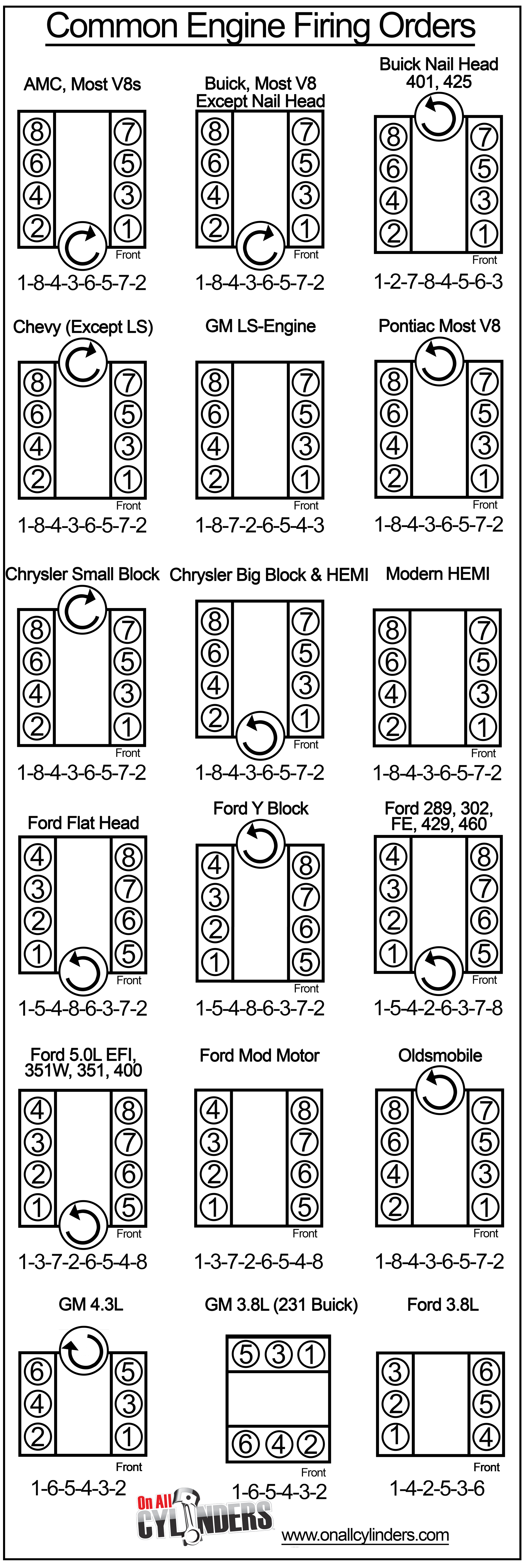

Verify Correct 3800 Series II Firing Order
The required sequence is:
1-6-5-4-3-2
- Confirm Hookup: Terminal 1 (Coil) --> Cylinder 1 / Terminal 2 (Coil) --> Cylinder 6
- Confirm Hookup: Terminal 3 (Coil) --> Cylinder 5 / Terminal 4 (Coil) --> Cylinder 4
- Confirm Hookup: Terminal 5 (Coil) --> Cylinder 3 / Terminal 6 (Coil) --> Cylinder 2
Mismatch Warning: Dismiss any diagram showing 1-2-3 or other sequences. Series II uses only 1-6-5-4-3-2.
Check Wiring Integrity and Routing
- Inspect wires for burns, cracks, or carbon tracking (especially where they cross valve cover edges).
- Ensure wires are securely seated on both coil terminals and spark plugs.
- Verify wires are routed in the factory loom clips to prevent cross-arching and maintain cylinder sequence.
- Measure wire lengths; incorrect replacements can cause misrouting.
Cross-Verify Fuel Injector Sequence
An improper injector connector sequence can mimic firing order issues:
- Bank 1 (Front) Injectors: Driver side cylinder 1 (front) --> Connector 1, Cylinder 2 (middle) --> Connector 2, Cylinder 3 (rear) --> Connector 3.
- Bank 2 (Rear) Injectors: Passenger side cylinder 4 (front) --> Connector 4, Cylinder 5 (middle) --> Connector 5, Cylinder 6 (rear) --> Connector 6.
- Label injector connectors before disconnection to ensure correct reconnection.
Use Systematic Verification
Test one cylinder at a time using a grounded spark tester. If no spark occurs for a cylinder expected to fire, retrace that specific wire's path and connections immediately. Confirm ignition coil terminal output with a noid light or multimeter if necessary.
