Understanding the wiring for a 2001 Chevy Silverado radio requires careful attention to variations between trim levels and audio systems. Key factors include base model configurations versus those equipped with Premium Sound or Bose systems.
Variations Based on Trim and Options
Radio wiring differs primarily between:
- Base Model (Non-Bose): Uses a simpler harness, often without separate amplifier connections or rear door speakers.
- Premium Sound / Bose System: Includes additional wiring for an external amplifier, rear door speakers, and sometimes amplified dash speakers (tweeters). Diagrams will show amplifier turn-on and signal return wires.
Identifying Connectors and Wires

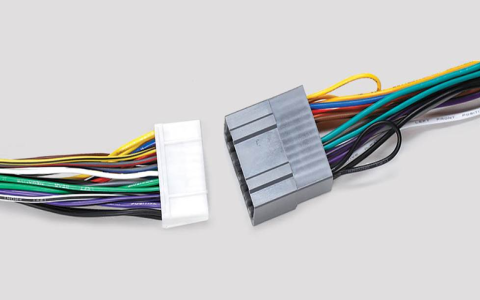

Locate the harness at the rear of the factory radio:
- Main Radio Connector (Typically Rectangle): Handles power, ground, speaker outputs, illumination, and accessory signals.
- Datalink Connector (Often Square, 4-16 pins): For Class II Serial Data communication. Essential for retained accessory power (RAP), chime integration, and optional OnStar functions.
- Separate Amplifier Harness (Premium/Bose only): Found near the glove box or behind the instrument panel. Requires matching diagrams specifically for these systems.
Essential Wiring Color Codes (GM General Standards)
Wiring colors often follow GM standards but confirm with vehicle-specific diagrams:
- Constant 12V+: Orange
- Ignition/Accessory 12V+: Yellow
- Ground: Black or Black/White
- Illumination/Dimmer: Brown or Gray (Can vary)
- Power Antenna: Pink (Often shared with Amplifier Turn-On in Base systems)
- Amplifier Turn-On (Premium/Bose): Dark Blue or Light Blue
- Amplifier Signal Return (Bose): Tan and Light Green pairs (low-level inputs)
- Datalink (+/-): Dark Green and Light Green
Speaker Wire Color Codes (Typical Front Door Pair)
- Left Front (+): Tan
- Left Front (-): Gray
- Right Front (+): Light Green
- Right Front (-): Dark Green
Critical Precautions
- Refer to Vehicle-Specific Diagrams: Published diagrams can have errors or regional differences. Cross-reference wire functions using a multimeter (voltage/continuity testing) with the ignition in ACC/RUN positions.
- Datalink (Class II) Caution: Avoid connecting power or ground to these wires. Mishandling can damage body control modules or instrument clusters.
- Identify Power Wires Accurately: Verify Constant (Orange) and Accessory (Yellow) using a multimeter to prevent battery drain or improper operation.
- Bose System Nuances: Replacing the head unit in a Bose system usually requires an integration interface (wiring module) unless bypassing the factory amp entirely.
Consulting verified diagrams for your specific Silverado VIN or RPO codes is paramount. Always disconnect the negative battery terminal before working on the harness.
