The crankshaft position sensor in a Ford 5.4L engine monitors crankshaft rotation to assist ignition timing and fuel injection. Identifying its location quickly ensures efficient maintenance.
Specific Location Details
On Ford 5.4L V8 engines, commonly found in trucks like the F-150, the sensor is mounted on the front engine block. Key aspects include:

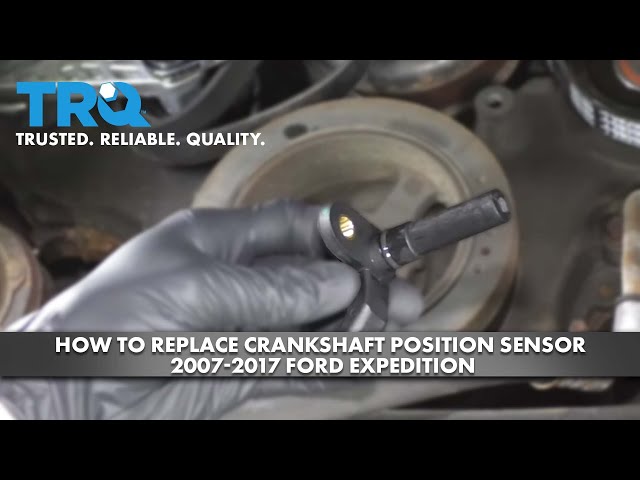

- Positioned near the crankshaft pulley or harmonic balancer.
- Typically attached to the timing cover on the passenger side for North American models.
- It sits under or behind components like the serpentine belt, power steering pump, or air conditioning compressor.
Access may require removing obstructing parts, but always disconnect the battery before handling to prevent electrical issues.
For optimal diagnosis, inspect with the engine cool and refer to your vehicle's specific service manual for precise guidance.
